You're halfway through a café refit when the attractive boiling-water tap becomes a plumbing problem. The cabinet has room for the tap, but the pipe route is tight, the nearest socket is already serving other equipment, and nobody has checked where the relief discharge will go. In a home, that can mean a frustrating retrofit. In a café or office, it can become a compliance issue, an interruption to service, or an expensive alteration after the counter is finished.

Good hot water tap installation starts before the tap is unpacked. The installer needs to assess the water supply, appliance design, electrical provision, safety valves, drainage, access and intended use. UK rules don't treat a stored boiling-water appliance as just another countertop fitting, particularly where the equipment serves food preparation or sits in a commercial premises.

Table of Contents

Regulatory Compliance and Pre-Installation Checks

The first question isn't whether the tap will fit the worktop. It's whether the proposed installation can be supplied, protected and discharged safely under the relevant UK requirements. Water Fittings Regulations apply to plumbing systems and appliances supplied from the public water supply, while Building Regulations create additional controls around heated wholesome water and certain stored hot-water appliances.

The 15-litre threshold matters. In England and Wales, Building Regulations notification applies where the appliance can store more than 15 litres of hot or boiling water. Appliances storing 15 litres or less can be exempt from notification only where the electrical supply is also exempt, such as a standard three-pin plug connection. The practical decision should be confirmed with the installer, local authority building control and the appliance documentation, rather than assumed from the tap's appearance. LABC's guidance on controlled hot-water fittings sets out this distinction.

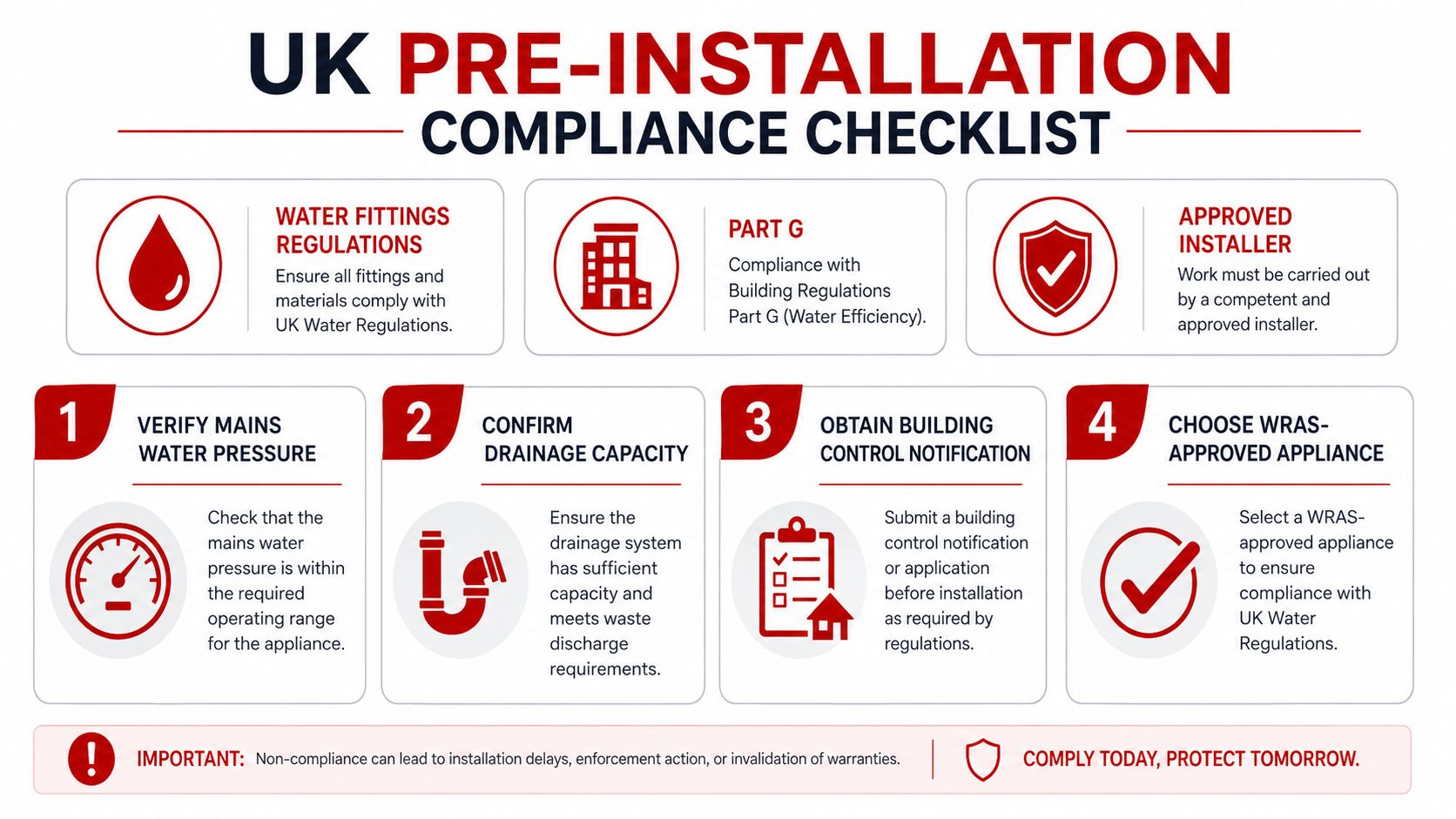

A UK pre-installation compliance checklist for plumbing and water appliances, highlighting four essential regulatory steps.

Domestic and commercial work

A domestic kitchen and a café counter may use similar-looking taps, but the compliance context differs. Advance notification is legally required for extensions or alterations to the water system in premises other than a domestic dwelling, so a mixed-use site shouldn't be treated like a home kitchen. A café, office, hotel or staff catering area may also need a clearer record of the appliance, backflow protection, isolation points and commissioning checks.

Approved Document G requires a suitable installation for heated wholesome water at sinks used for food preparation. It also addresses resistance to temperature and pressure effects, while bath outlet temperatures must remain below 48°C, a requirement that doesn't mean boiling-water outlets can be treated like ordinary hot taps. WaterSafe's Water Fittings Regulations FAQ is useful when deciding whether notification or consent is needed.

Before ordering, record:

  • Water supply: Confirm the manufacturer's required pressure and flow against the available mains supply.
  • Backflow protection: Check the appliance specification and planned hot and cold connections.
  • Discharge route: Make sure safety-valve discharge will be visible, safe and not hidden behind a sealed cabinet.
  • Building control: Establish whether the storage capacity and electrical arrangement make the work notifiable.
  • Appliance suitability: Select equipment designed for the UK water regulations and obtain the required approval or compliance evidence.

The regulations require boiling-water systems to include backflow protection, temperature control, temperature or combined temperature-and-pressure relief, and a pressure-activated expansion valve. The appliance temperature must not exceed 100°C, and safety-device discharge must be safe, conspicuous and not continuous, as detailed in the UK drinking-water standards and guidelines.

For a café or office, keep the compliance record with the site's equipment information. A coffee machine electrical safety testing resource can also help when coordinating electrical checks around the wider beverage station, although it doesn't replace the required plumbing or building-control assessment.

Essential Tools and Electrical Requirements

A professional installation needs a clear work area and the right tools, not just an adjustable spanner. The basic kit usually includes pipe cutters, an adjustable wrench, screwdrivers, a drill suitable for the worktop material, a deburring tool, PTFE tape where the manufacturer permits it, a bucket, cloths, a torch and a means of checking for leaks after the cabinet has been refitted.

Don't use sealant or tape as a substitute for a correctly seated washer. Push-fit systems need clean, squarely cut pipe, while compression fittings need the correct insert and an even tightening sequence. Excessive force can damage a fitting or distort the seal, creating a slow leak that only appears once the cabinet is closed.

Prepare the under-sink cabinet

The boiler tank and filtration unit need enough space for installation and future servicing. Leave access to isolation valves, filter housings, electrical connections and safety devices. A cramped cabinet may technically accept the equipment but make cartridge changes, descaling or fault diagnosis unnecessarily difficult.

Use this preparation checklist:

  • Measure the equipment: Allow for the tank, filter, pipe bends and cable route, not just the tap body.
  • Plan ventilation: Follow the manufacturer's clearance requirements and avoid blocking ventilation around the tank.
  • Protect the cabinet: Use a removable tray or suitable protection where a minor leak could damage joinery.
  • Keep routes serviceable: Don't bury joints behind fixed panels or run tubing where it can kink.
  • Separate hot and cold paths: Prevent heat from the boiler and hot discharge pipe warming the drinking-water feed.

The electrical supply deserves the same care as the plumbing. A standard UK instant hot-water tap installation typically needs a grounded 220/240V, 50Hz, 13-amp fused outlet under the sink, and manufacturer guidance recommends a separate dedicated circuit where possible. A shared socket may work on a light domestic setup, but it can create nuisance tripping when other equipment starts or draws power.

In a café, the dedicated circuit should be planned with the electrician alongside espresso machines, grinders, dishwashers and refrigeration. The final connection must follow the appliance instructions and current electrical requirements. Don't extend a trailing lead through a wet cabinet or hide a plug where it can't be isolated quickly.

If the tap includes filtration, the water line needs equal attention. The install home water filters guide offers useful background on under-sink filter planning, but the boiling-water appliance's own instructions and UK water regulations take priority. For product terminology and a comparison of combined functions, see what a Billi tap is.

Plumbing Connections and Safety Valve Fitting

A safe connection starts with the UK Water Fittings Regulations and the appliance instructions. In a café or office, the tap may share a crowded service cupboard with filtration, refrigeration and electrical equipment, so the isolation point, pipe route and discharge path must remain accessible. Isolate the mains supply first, confirm the pipework is clean and suitable, and use a direct mains connection for drinking water where possible rather than routing it through storage or treatment equipment that could affect wholesomeness.

Use this installation sequence:

  1. Mount the tap and control components according to the manufacturer's instructions. Check that the spout clears the sink and that users cannot reach across an unsafe discharge area.
  2. Connect the cold mains feed through the specified isolation arrangement and filtration components.
  3. Fit double check valves on both the hot and cold supply pipework serving multifunction taps, as required by relevant water-supply guidance.
  4. Install the safety package supplied or specified for the appliance, including temperature control, temperature or combined temperature-and-pressure relief, and the pressure-activated expansion valve.
  5. Route the discharge pipe to a safe, visible position where leakage or discharge can be identified promptly.
  6. Insulate exposed pipework passing through unheated areas or positioned where it could transfer heat to cold-water lines.

These valves serve a required safety function and should not be omitted solely because the unit includes an internal check valve unless the manufacturer's documentation confirms the arrangement is compliant. The installer remains responsible for fitting the components in a way that meets the appliance requirements and applicable UK regulations.

Douwe Egberts Eco Pavement Stand

Make discharge visible

Relief discharge is easy to hide inside a full cabinet, yet it must remain safe and conspicuous. Keep the outlet away from electrical equipment, staff and customers, and position it where hot water cannot cause injury. Continuous discharge points to a fault, excessive pressure or incorrect installation. Treat it as a defect requiring investigation, not as harmless dripping.

Practical rule: If you need to remove the cabinet back panel to reach the discharge pipe, the route should be reconsidered.

Pipe routing also affects water quality and appliance performance. Cold-water pipework should, so far as reasonably practicable, stay below 25°C, so separate it from boiler tanks and hot discharge pipework. In garages, outbuildings and other unheated areas, hot and cold pipework must be insulated. Pipework under solid floors should be insulated and run in a continuous duct with no joints beneath the floor, following water-company installation guidance.

Keep the feed short without creating tight bends, and do not run the cold drinking-water line directly against the hot outlet or relief pipe. Where a range of cold-water taps is fitted at the same counter, plan the cold feeds as one coordinated route before the cabinet becomes crowded.

The Douwe Egberts Eco Pavement Stand is a separate catalogue item for the surrounding beverage-service area. It does not replace the plumbing safety components or discharge arrangements required for the tap.

Commissioning and Testing the System

A tap that dispenses water immediately after connection isn't necessarily ready for service. Commissioning removes installation debris, confirms the tank has filled correctly and proves that the safety controls work under operating conditions. The first fill is especially important because energising a dry heating element can destroy the boiler.

Begin with the electrical supply isolated. Open the water feed and follow the manufacturer's filling sequence until the tank is full and water flows steadily from the appropriate outlet. Only then restore power. If the unit has a separate filter, flush it for the manufacturer's specified period and discard the initial water, which may contain manufacturing residue or carbon fines.

Use a controlled start-up

Set the temperature for the job rather than selecting the highest setting automatically. A setting around 98°C may suit black tea, while coffee preparation or instant meals may benefit from a lower temperature depending on the recipe, equipment and manufacturer's guidance. The outlet still requires scald protection because near-boiling water can cause serious injury.

Work through the commissioning checks in order:

  • Flush each route: Run filtered and boiling-water outlets as instructed, checking that flow becomes clear and consistent.
  • Inspect every joint: Look at the isolation valve, filter head, hose connections, check valves and tank connections.
  • Check operating pressure: Confirm the appliance behaves correctly when the tank heats and the supply is under normal demand.
  • Observe the discharge: Verify that the relief pipe is secure, visible and not discharging continuously.
  • Test controls: Confirm the temperature control, indicator lights, safety lock and shut-off functions operate as intended.
  • Record the baseline: Note the filter type, temperature setting, installation date and any service instructions.

A full leak test should include the cabinet floor, not just the visible fittings. Dry the area first, run the tap through its functions, allow the tank to heat, then inspect again. Small leaks often show around a compression nut or filter connection only after pressure and temperature change.

For broader context on stored hot-water equipment, the water heater installation guide is a useful reference, though the appliance manual remains the controlling document for the specific tap. Commercial beverage areas should also coordinate commissioning with the wider commercial coffee machine installation guide so power, drainage and access don't conflict.

Commercial Considerations and Maintenance Costs

A boiling-water tap in a home may sit unused for hours. In a café or office, staff and visitors may operate it repeatedly without knowing the installation or recognising early warning signs. The purchase price is only one part of ownership. Filters, scale, access, testing and replacement components all affect reliability and running costs.

Hard-water sites need a planned descaling routine. Scale restricts flow, reduces heating performance and can affect valve operation. Replace filters according to the manufacturer's water-volume or time guidance, rather than judging the cartridge by appearance. Keep a service record covering filter changes, cleaning, reported faults and relief-valve observations.

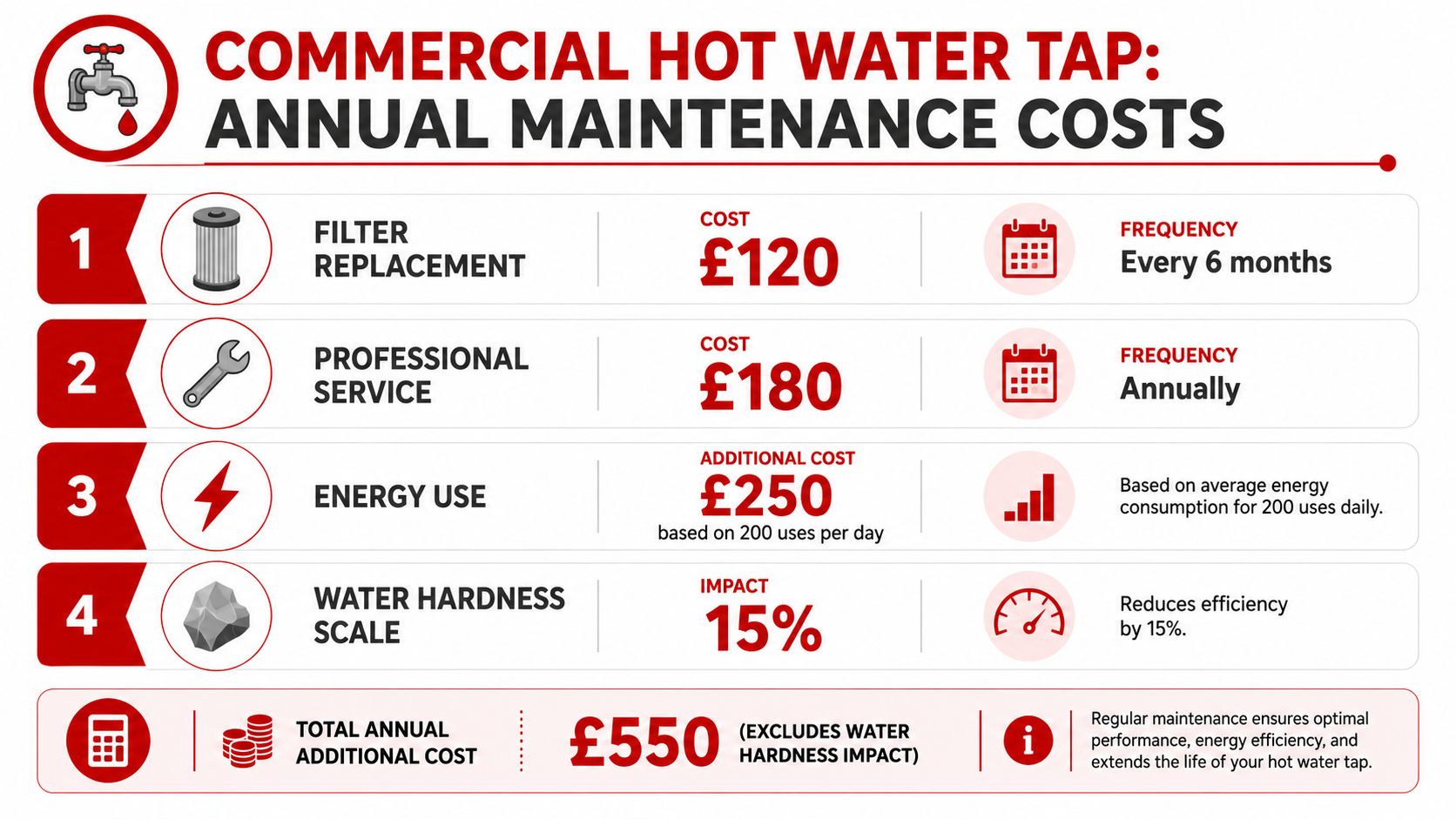

An infographic detailing the estimated annual maintenance costs and service requirements for a commercial hot water tap.

Budget for ownership, not just fitting

The available UK estimate for an unvented-cylinder installation gives an installation cost of £3,200 to £5,800, annual servicing of around £95 to £125, and total annual maintenance of around £147 to £177 when safety and expansion components are included. These figures apply to hot-water systems more broadly, so they should not be transferred directly into a boiling-water tap quotation. They do show why buyers should confirm service intervals, replacement-part costs and access requirements before approving the work. The UK cost guidance provides the relevant context.

Pipe routing also affects operating costs. Insulation in unheated areas limits heat loss and helps protect against freezing. Maintain sensible separation so the cold drinking-water feed is not warmed by adjacent hot pipework. On a busy site, poor routing can lead to avoidable call-outs when staff shut valves, move filters or store cleaning materials against the installation.

Commercial premises require a separate notification check. Alterations to a non-domestic water system may need advance notification, and mixed-use buildings should be assessed by the responsible installer rather than treated as domestic installations. Food-preparation sinks create an additional Building Regulations consideration.

Legionella control must cover the entire hot-water network. HSE guidance states that a circulating hot-water loop should return water at 50°C or above, while branches serving individual hot taps should be sized so water at each tap reaches 50°C within one minute of opening. A standalone boiling tap may have no conventional circulating loop, yet its connected pipework still requires system-wide assessment under the site's responsible-person review. Use the HSE hot-water pipe guidance when reviewing the arrangement.

A written service arrangement clarifies who handles routine work and urgent failures. Compare the scope through our commercial coffee machine service contracts page, checking whether water equipment, filters, safety devices and emergency attendance are included. Equipment positioned beside a coffee machine is not automatically covered by the same contract.

Troubleshooting Common Installation Faults

Spitting, low flow and temperature fluctuation usually point to a small group of causes. Air trapped after filter replacement can make the outlet cough, while a kinked tube, partly closed isolation valve or blocked filter can restrict flow. Let the system fill fully, purge air according to the manual and inspect the entire route before adjusting anything else.

Temperature changes under demand may indicate inadequate mains pressure, an undersized feed or a heating system that hasn't recovered between uses. A tripping RCD is different. Isolate the appliance and call a qualified electrician or service engineer rather than repeatedly resetting it, especially if water is present in the cabinet.

Use this decision point:

  • Safe user checks: Look for a kink, confirm the isolation valve is open and inspect for visible leaks.
  • Engineer checks: Investigate pressure, check valves, expansion control, temperature control and relief discharge.
  • Stop immediately: Don't use the tap if water reaches electrical parts, the relief pipe discharges continuously, the casing is damaged or the outlet temperature is uncontrolled.

A valve or control component should be identified by its actual part number and appliance documentation. For example, the Matrix Dispense Valve 12v is a named catalogue component, but its suitability for a particular hot-water tap must never be assumed without checking the system design.

External repair resources may describe general water-heater fault diagnosis, such as water heater repair in Las Vegas, but UK installations must be assessed against UK water and building requirements. If the fault involves backflow protection, relief valves, electrical safety or a commercial notification question, use a competent UK plumber or engineer and retain the test record.
