A Saturday afternoon rush can expose a weak point in a slush machine within minutes. The queue reaches the counter, customers choose the brightest flavour, and one seized tap turns a profitable service period into refunds, sticky worktops and frustrated staff. In many cases, the machine itself isn't finished. The failed item is a seal, coupling, handle, paddle or other small component that can be changed far more easily than a complete unit.

That's why buying slush machine parts isn't just a repair exercise. UK operators need to know which components affect texture, hygiene, safety and uptime, which spares should be kept on site, and which faults require a qualified engineer. The right approach links every part to its function, inspection point and realistic replacement plan.

Table of Contents

Why Slush Machine Parts Matter in a Busy UK Venue

A busy seaside arcade, café or leisure venue usually notices a parts problem at the worst possible moment. A tap starts dripping during service, the handle becomes stiff, or the auger stops turning while the bowl is full. Staff may assume they need a replacement machine, yet a compatible seal, drive coupling or tap component can often restore service quickly if the fault has been identified correctly.

The commercial risk comes from downtime, not just the cost of the spare. A machine that can't dispense removes a popular cold-drink option, creates extra cleaning work and can leave staff trying to manage customer expectations during the busiest part of the day. Holding the right wear items turns an emergency call-out into a controlled maintenance task.

Operators choosing equipment should also consider how easily the machine can be serviced. The guidance in this commercial slushie machine buying guide is useful because capacity and menu appeal are only part of the decision. Access to seals, taps, paddles and technical support matters just as much once the machine is trading.

Practical rule: Stock the parts that stop service first, then plan the components that protect cooling, hygiene and machine life.

In UK use, ingredient control adds another reason to take parts seriously. The government lists glycerol, E422, as a key ingredient used in slush ice drinks to prevent them freezing solid, and states that it must be used only at the level needed to create the slushed texture and appear on the ingredients label. The UK government guidance on approved additives and E-numbers also records the 2023 advice that slush ice drinks containing glycerol aren't suitable for children under 4. Accurate mixing and reliable metering therefore depend on clean, correctly fitted components.

How a Slush Machine Is Built and Where Its Parts Sit

A typical commercial machine is easier to diagnose when you divide it into functional groups rather than searching through a catalogue of isolated components.

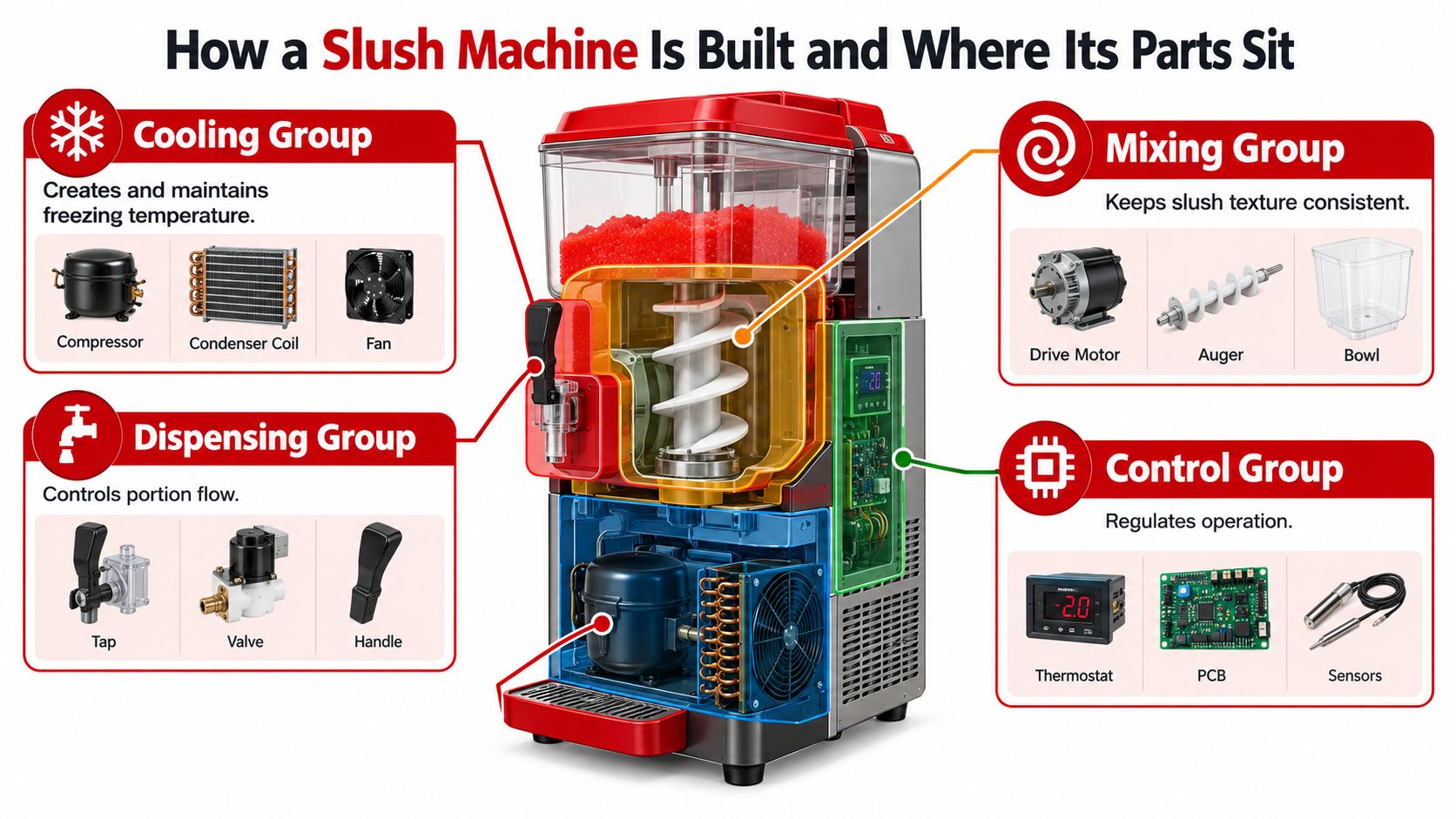

A diagram illustrating the internal components of a commercial slush machine grouped by functional category.

Cooling group at the rear and base

The refrigeration system normally sits at the back and underneath the bowls. It includes the compressor, condenser coil, fan, evaporator around the bowl, capillary tube or TXV and refrigerant lines. This group removes heat from the mix and maintains the temperature needed for a spoonable texture.

Mixing group in the bowl

Inside the product chamber, a vertical drive shaft connects the motor and gearbox to an auger or paddle. The bowl lid closes the chamber and may include feed holes or a lid stirrer. The agitator keeps the mix moving while the machine freezes it, helping prevent uneven crystallisation.

The video below provides a visual introduction to the way commercial frozen-drink equipment is arranged.

Dispensing group at the front

The front assembly includes the tap body, handle, spring, piston, nozzle, seals and drip tray. Some machines also use a portion valve or non-return valve. These parts experience repeated contact with syrup, cleaning chemicals, staff hands and customer use.

Structural and control group

The tank shell, insulation, feet, rear panel, electrical enclosure, PCB and probes hold the machine together and regulate operation. This layout gives you a useful first check. A poor texture points towards cooling or mixing, a leak points towards dispensing or sealing, and a dead machine points towards electrical or control components.

Cooling Parts and What Tells You They Are Failing

Cooling faults cost more to diagnose because refrigeration components are more expensive and several failures produce similar symptoms. A machine that takes too long to freeze may have a dirty condenser, a refrigerant problem, a restricted line or a compressor that isn't performing properly. Ordering a part from the symptom alone is risky.

Start at the rear of the unit. Dust, flour, grease and salty air can coat the condenser coil and restrict heat transfer. The compressor may then run continuously while the bowl remains soft. If cleaning the accessible condenser doesn't restore performance, the fault needs technical diagnosis rather than repeated parts swapping.

The evaporator sits around the freezing chamber and transfers cooling into the product. Refrigerant loss, corrosion or damage can create thin slush or warm sections in the bowl. Capillary tubes, TXV components and drier filters can also restrict refrigerant flow and mimic an undercharged system.

Cooling part Function Typical failure symptom
Compressor Circulates refrigerant through the sealed system Hard starting, excessive heat, repeated trips or no cooling
Condenser coil and fan Releases heat from the refrigerant circuit Long freeze times and a compressor that runs constantly
Evaporator Transfers cooling around the bowl Thin product or uneven cold areas
Capillary tube or TXV Controls refrigerant flow Poor cooling that may resemble low refrigerant charge
Drier and refrigerant lines Filter and carry refrigerant Restricted cooling or unstable performance

A commercial operator may also compare the machine's cooling behaviour with other chilled equipment, such as events fridge with glass front, where airflow and condenser cleanliness also influence reliable temperature control. The principle is the same, but sealed-system repairs on slush equipment should be left to an appropriately qualified engineer.

For a symptom-led sequence, use this slush machine troubleshooting guide before ordering refrigeration parts. Clean what the operator can safely access, record the behaviour, then escalate sealed-system work.

Mixing and Agitation Parts That Keep the Slush Moving

The mixing system keeps the product moving as it freezes. The motor turns through a gearbox, the gearbox transfers torque to the drive shaft, and the shaft rotates an auger or paddle inside the bowl. The paddle scrapes product away from the cold wall and keeps ice crystals distributed through the mix.

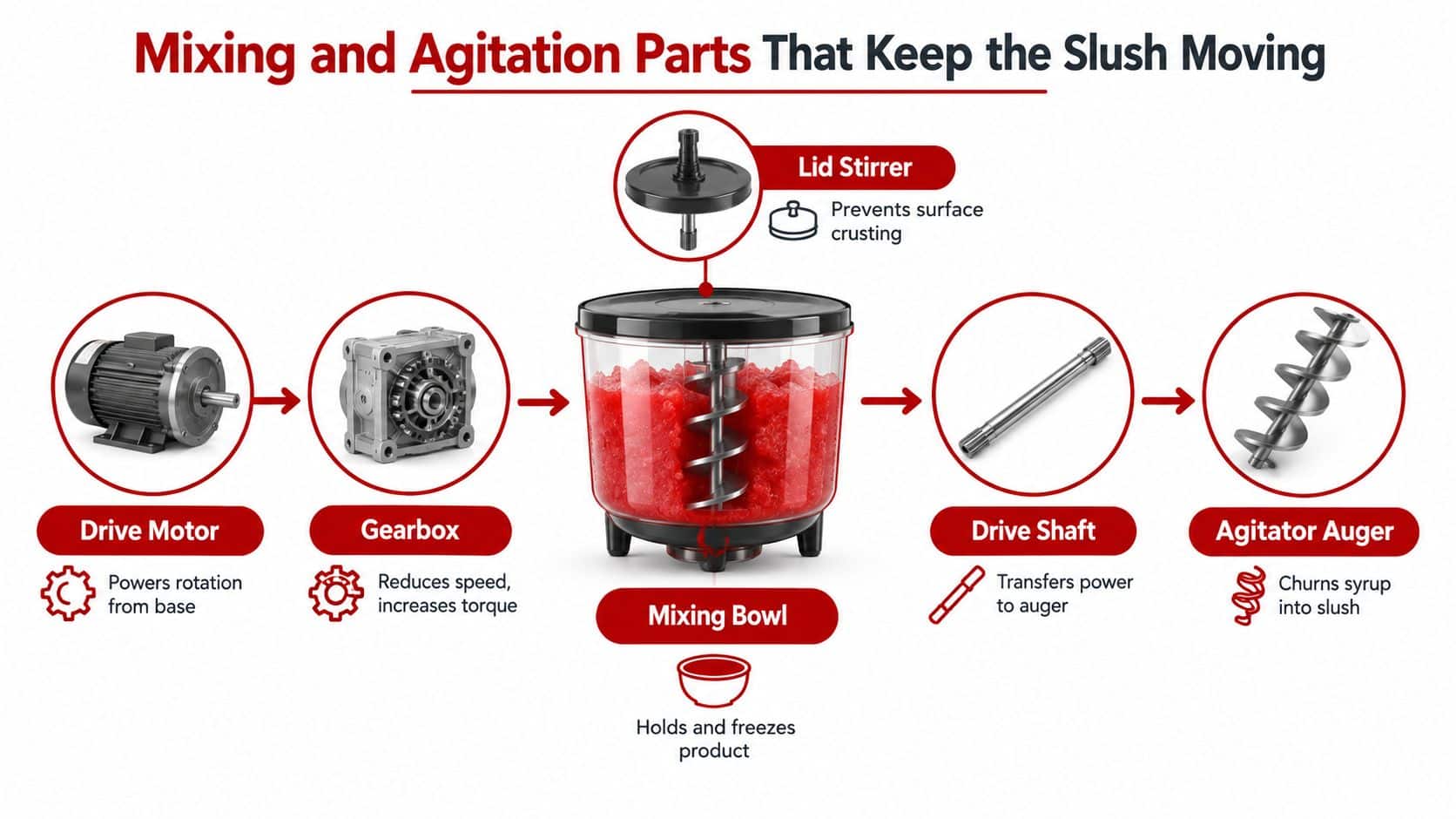

A diagram illustrating the key components of a slush machine, including the motor, gearbox, bowl, shaft, and auger.

A motor that hums without turning may indicate a seized gearbox, a capacitor fault or a motor problem. If the product freezes hard around the bowl edge while the centre stays loose, inspect the paddle or auger for wear, incorrect fit or restricted movement. Rattling and knocking suggest a bent shaft, loose hub or damaged coupling.

Replace the complete assembly or one component

Motors, gearboxes and PCBs are commonly replaced as assemblies because their internal tolerances and electrical specifications matter. Paddles, shafts, shaft seals and grommets can often be replaced individually when the surrounding components remain sound.

Don't force an auger onto a worn shaft. The machine may run, but the resulting vibration can damage the coupling, gearbox or bowl assembly. Check the drive entry for frost, syrup tracks or unusual movement before returning the unit to service.

A weekly visual check needs no specialist tools:

  • Movement: Confirm that the paddle turns freely when the machine is safely isolated and the manufacturer permits manual inspection.
  • Shaft entry: Look for frost build-up, syrup residue or moisture around the seal.
  • Product condition: Check for unusual discolouration near the seal, which can indicate contamination or material breakdown.
  • Noise: Compare the operating sound with the machine's normal pattern rather than waiting for a complete seizure.

Dispensing Parts Including Taps, Handles and Drip Trays

The dispensing assembly receives more direct handling than any other part of the machine. Staff operate the handle repeatedly, customers pull or press the control, and sugary mix passes through the body, piston, seal and nozzle on every pour.

A leaking tap body usually points towards a worn or displaced seal. A sticky handle may come from a tired spring, contaminated piston or syrup residue. Slow flow often indicates a blocked nozzle, restricted piston or obstruction in the product path. Drips after pouring are commonly associated with the tap seal, while a flooded drip tray may result from a blocked waste outlet or a tray that hasn't been emptied.

Part Symptom in service Likely cause
Tap handle Stiff, loose or difficult to return Worn spring, sticky piston or damaged handle
Tap body Product leaks from the assembly Perished seal, crack or poor fit
Piston and nozzle Slow or uneven pour Syrup residue, blockage or wear
Tap seal Drips continue after service Flattened, swollen or split seal
Drip tray and waste Overflow or standing liquid Full tray, blocked drain or poor positioning
Splash guard Product reaches the counter Missing, cracked or badly fitted guard

Hold tap seals, handles, drip trays and splash guards as running stock. Order tap bodies and pistons against an identified fault, because compatibility varies between machines. Plastic components can absorb colour from syrups, so persistent discolouration is a sensible replacement reason even if the part still operates.

A simple rebuild sequence helps staff work consistently:

  1. Isolate the machine and empty the product path according to the manufacturer's procedure.
  2. Remove the handle, spring, piston and seal in order.
  3. Clean each reusable component with the approved method.
  4. Replace damaged or discoloured parts with the correct kit.
  5. Lubricate only with a food-safe product specified for the machine.
  6. Reassemble, test for leaks and check the drip tray before service.

Seals and Gaskets and Why They Drive Most Downtime

Seals often fail without warning. A small syrup trail on the floor, moisture around the drive entry or ice forming behind the bowl may appear before staff recognise that a component has deteriorated.

The main seal family includes the rear tank seal, drive shaft seal, tap seal, lid gasket and base gasket. The rear tank seal helps protect penetrations and the rear assembly from moisture. The drive shaft seal keeps syrup away from the motor and gearbox. The tap seal controls drips, while the lid gasket helps keep the product chamber closed and clean.

UK specialist maintenance guidance recommends a full clean-down, sanitisation and seal lubrication weekly or every 500 drinks, whichever comes first. The same guidance recommends weekly condenser cleaning on most models and annual replacement of the rear tank seal, drive shaft seal and tap seal. See the detailed slush machine maintenance guidance when creating a site-specific schedule.

Planned replacement is safer than visual guessing

In a high-turnover venue, operators may choose a shorter interval for lid gaskets where frequent opening, syrup residue and cleaning place extra stress on the material. Any seal showing swelling, splitting, flattening, brittleness or colour loss should be replaced immediately.

A complete seal kit is usually more practical than ordering individual rings after each failure. Don't mix materials from unrelated kits, because syrup concentrates and cleaning chemicals can react differently with incompatible rubber compounds.

For comparison, the same discipline applies to other beverage equipment. Parts catalogues such as milk frother replacement parts are useful reminders that a small seal can control hygiene and uptime in equipment far beyond the slush category.

Electrical, Control and Filter Parts Worth Knowing

Electrical and control components are less visible than taps and gaskets, but they can stop the entire machine. The main PCB controls functions, temperature probes report conditions, float switches confirm fluid position, and filters or strainers protect the product or water path from debris.

A failed board may produce no power, random stop-start behaviour or an unresponsive control panel. A tired temperature probe can make the machine freeze too slowly or stop at the wrong point. A stuck float switch may prevent operation even when the machine appears full, while a blocked mesh strainer can reduce flow and make the fault look like a pump or valve problem.

Match behaviour to the component group

Don't begin by replacing the PCB because the machine has stopped. Check the power supply, visible wiring, connectors and safety interlocks first, then have a competent person test the relevant circuit. Capacitors and relays may be repairable items on some boards, but replacement must match the machine's electrical specification.

Water quality and filtration also affect valves, pumps and sensors. A properly selected water filtration system can help protect beverage equipment where the machine uses a water connection or an inline filter.

The practical sequence is straightforward:

  • Record the symptom: Note whether the machine is dead, stops intermittently, refuses to start or runs without reaching texture.
  • Check the simple restriction: Inspect an accessible filter, strainer or blocked inlet.
  • Confirm the sensor condition: Look for damaged probe leads, loose connectors or a float that doesn't move freely.
  • Escalate safely: Isolate the machine before internal work and use a competent person for electrical testing.

A small filter replacement can prevent a much more disruptive control fault, but the replacement cost and saving will depend on the machine and parts supplier. Avoid relying on assumed prices.

OEM Versus Compatible Slush Machine Parts

UK buyers generally choose between original manufacturer components, named compatible parts and unbranded generics. The cheapest option isn't automatically the lowest-cost decision once poor fit, repeat labour or lost service is included.

Factor OEM Compatible Generic
Price Usually highest Often mid-range Usually lowest
Fit confidence Strong when the model is confirmed Good when dimensions and specification are verified Variable
Warranty position Most likely to preserve manufacturer requirements Check with the supplier and machine warranty terms May create uncertainty
Lead time Depends on authorised stock Often practical through specialist stockists Can be unpredictable
Best use Cooling, drive and electrical assemblies Dispense parts, seals and structural items when specified Low-risk trim only, after careful measurement

Use OEM parts where tolerances, refrigerant compatibility, electrical ratings or safety certification matter. That includes compressors, evaporator assemblies, drive components, PCBs and temperature-control parts.

Named compatible parts can work well for tap assemblies, seals, drip trays and trim when the supplier confirms the model, material and dimensions. The fit still needs checking. A seal that looks identical can swell, flatten or leak if its material isn't suitable for the syrup and cleaning regime.

Unbranded generics are the riskiest choice for drive shafts, refrigerant components and electrical boards. Saving money on a visible handle may be reasonable if fit is confirmed. Saving money on a safety-related or sealed-system component isn't a sound trade-off.

Reading the Data Plate to Find the Right Part Number

A vague description such as “large two-bowl slush machine” isn't enough for accurate ordering. Start with the data plate, which is commonly found on the rear panel, inside the cabinet door frame or beneath the drip tray.

Look for the brand, model, serial number, voltage, refrigerant information and conformity marking. The model and serial combination often identifies production changes that aren't obvious from the cabinet shape. A refrigeration assembly may also carry a separate code from the outer cabinet.

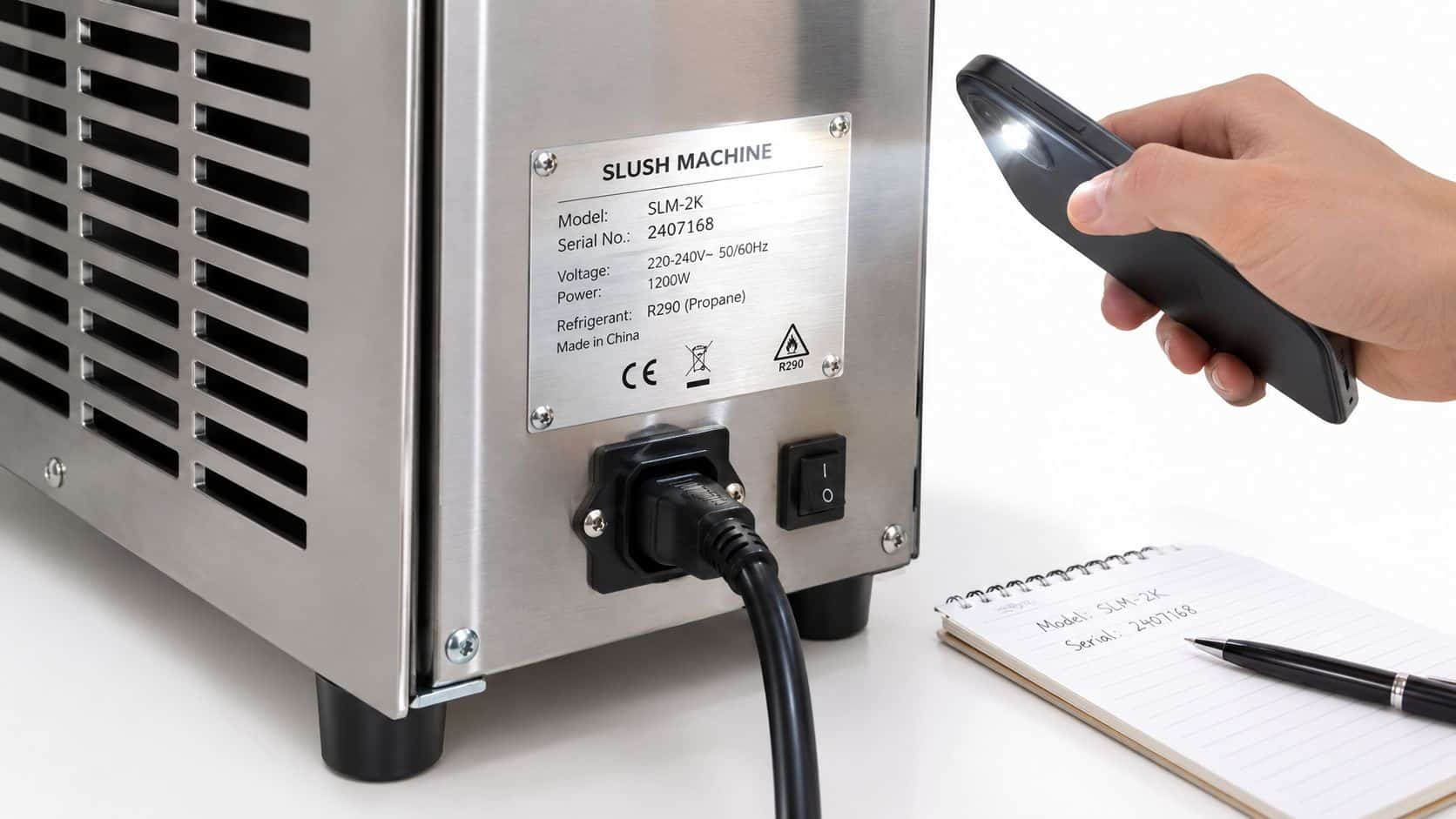

A hand illuminates a metal slush machine label with a phone flashlight while recording details on paper.

A reliable identification routine

  1. Photograph the full data plate in good light.
  2. Record the model and serial exactly, including letters and hyphens.
  3. Photograph the suspect part while it remains fitted, if safe to do so.
  4. Capture connection points, fixing holes, shaft length and seal profile.
  5. Tell the supplier whether the fault concerns cooling, mixing, dispensing or control.
  6. Confirm the proposed part number in writing before placing the order.

Production revisions can change a part while the machine's outer model name stays similar. Plates may also be painted over or damaged, so the component photograph becomes valuable evidence. Don't quote the cabinet code if the supplier needs the refrigeration, drive or dispense assembly code.

UK Compliance and Why Some Parts Are Safety Critical

A slush machine part can affect more than reliability. It can influence food hygiene, safe access, moving-part protection and the conditions under which staff clean or maintain the equipment.

The Health and Safety Executive's machinery maintenance guidance states that work equipment should be maintained by a competent person, maintained regularly using manufacturer instructions and safely isolated during maintenance. Its maintenance guidance for work equipment makes planned inspection and safe isolation central to the process.

PUWER also requires work equipment to be maintained in an efficient state, efficient working order and good repair. That matters for agitators, spindles, lids, drive components and taps. A loose paddle, exposed moving part, leaking seal or damaged lid can create a safety or hygiene concern, not merely an annoying service fault.

Part Regulation or standard What inspectors or auditors look for
Tap and tap seal Food hygiene controls Clean, intact, leak-free food-contact surfaces
Bowl lid and gasket Food hygiene and HACCP procedures Secure cover, clean seal and protection from contamination
Agitator and drive shaft PUWER Secure fixing, guarded movement and no unsafe access
Electrical board, probe and wiring Electrical safety requirements Correct rating, sound installation and no exposed damage
Rear panel and access covers PUWER Safe enclosure of moving and electrical components

The UK FSA's glycerol advice also makes accurate formulation and labelling important for operators, particularly because the 2023 advice excludes children under 4 from slush ice drinks containing glycerol. Metering, mixing and dispensing parts must therefore be kept in a condition that supports the intended recipe and documented operating procedure.

Maintenance Schedule Tied to Specific Parts

A useful schedule separates operator checks from work that needs a technician. It should also reflect the machine manufacturer's instructions, venue risk assessment and cleaning chemicals in use.

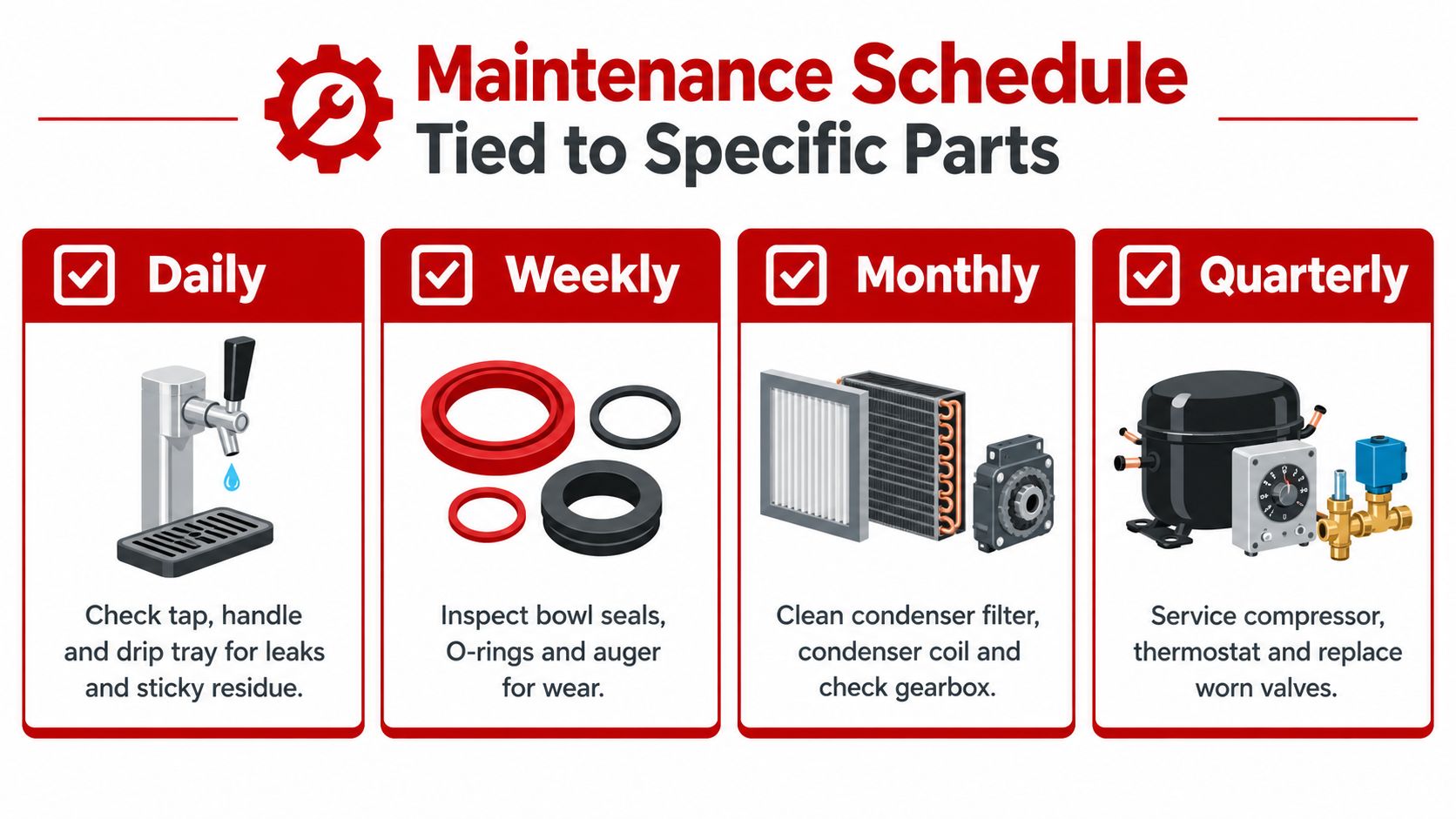

A maintenance schedule infographic for a slush machine detailing daily, weekly, monthly, and quarterly service tasks.

Daily checks

Inspect the tap, handle and drip tray for leaks, sticky movement and syrup residue. Wipe external surfaces and record anything that changed during the shift.

Weekly checks

Inspect the bowl, lid gasket and paddle for wear, noise or restricted movement. Clean the condenser where the model allows safe access. Specialist UK guidance recommends full cleaning, sanitisation and seal lubrication weekly or every 500 drinks, whichever comes first, with annual replacement of the rear tank, drive shaft and tap seals.

Monthly checks

Test the float switch, inspect the drive shaft seal for weeping and check connectors around the PCB and probe leads. Look for heat discolouration, loose wiring or signs of liquid ingress.

Quarterly and annual planning

Replace worn tap seals and clean or replace inline filters where fitted. Verify probe readings against the site's approved reference method. Annual servicing should include gasket assessment, condenser work and drive-motor inspection, while sealed-system work must be handled by an appropriately qualified engineer.

Keep a small shelf of fast-moving tap seals, drive shaft seals, paddles and lid gaskets. HSE guidance supports regular maintenance by a competent person and safe isolation, so staff shouldn't improvise internal repairs during service.

Lead Times and Ordering Slush Machine Parts in the UK

Lead time depends heavily on the part. Consumables and common dispense items are easier to source than a compressor, evaporator or obsolete control board. Summer demand can also expose weak stock planning, particularly for leisure venues that rely on frozen drinks during warm trading periods.

Before ordering, narrow the fault to a component group. A leaking tap doesn't justify ordering a complete dispense assembly, and a soft product doesn't automatically mean the compressor has failed. Use the data plate, photographs and the old part's measurements to confirm the correct reference.

Component Function Typical failure symptom Service-life approach
Compressor Circulates refrigerant No cooling, hard start or repeated trips Diagnose before replacement
Condenser Releases heat Long freeze time or continuous running Clean regularly, replace if damaged
Evaporator Transfers cooling to the bowl Thin slush or warm areas Engineer diagnosis for sealed-system faults
Drive motor Powers agitation Humming, stopping or no rotation Replace when testing confirms failure
Drive shaft seal Keeps syrup away from drive parts Weeping, frost or syrup at shaft entry Planned replacement and immediate change if damaged
Auger or paddle Moves product through the bowl Uneven freezing, noise or poor texture Inspect routinely, replace when worn
Tap assembly Controls dispensing Leaks, sticking or slow flow Keep common wear items available
Tap seal Stops drips Drip after pouring Replace at planned service or on failure
Drip tray Catches spills Overflow or standing liquid Empty and clean daily, replace if cracked
PCB Controls operation No power or random stopping Test before ordering
Temperature probe Reports product or system temperature Incorrect freezing behaviour Check wiring and calibration
Float switch Detects level or position Machine refuses to start Clean, test and replace if stuck
Inline water filter Restricts debris and protects flow Reduced flow or blocked inlet Change according to water and equipment conditions

UK-held tap seals, handles, drip trays and gaskets may be available faster than specialist drive or refrigeration items, but always confirm stock rather than assuming availability. Drive motors, PCBs and gearboxes may need a supplier search, while sealed-system parts can require an engineer and additional planning.

Minimum order values, courier charges and VAT treatment vary by supplier. Consolidating related seals, filters and dispense parts can be more efficient than placing several small orders, but don't delay a critical repair merely to build a larger basket.

The slush machine spare-parts availability information can help you plan the next step. Use this decision path:

  1. Identify the symptom during service.
  2. Narrow it to cooling, mixing, dispensing or control.
  3. Photograph the data plate and suspect component.
  4. Confirm the exact part number and compatibility.
  5. Check stock, delivery options and whether an engineer is required.
  6. Isolate the machine safely, fit the part and document the repair.

Allied Drinks Systems supplies slush machines, drinks equipment and spare parts for cafés, offices, hospitality venues and other UK operators, helping buyers consolidate equipment and consumables through one supplier. Visit Allied Drinks Systems with your machine model, serial number and a photograph of the suspect component, then ask the team to help identify the practical replacement route.
