You're halfway through a busy Saturday service when the steam wand starts spitting water instead of producing a smooth, dry foam. At home, the same problem appears as a whisk that turns slowly, a jug that leaks from the base, or an automatic frother that stops responding. In many cases, the machine hasn't reached the end of its useful life. The right milk frother replacement parts, matched and fitted properly, can restore service without sending the whole unit away.

This UK guide takes a multi-brand procurement approach. It covers how to identify the failed component, confirm the exact model, source a compatible spare, decide whether repair still makes financial sense, install service-friendly parts safely, and reduce the chance of another breakdown. Water quality, cleaning and blocked milk paths matter just as much as the replacement component, so limescale prevention guidance belongs in the same workflow.

Table of Contents

Why Milk Frothers Fail and What You Can Do About It

Most frother faults start with a small number of wear items. Milk residue hardens around whisk assemblies, nozzles and tubing. Seals lose elasticity, valves stop moving cleanly, and drive couplings wear where the motor transfers power to a whisk or impeller. A failed motor or control board is possible, but it shouldn't be your first assumption.

Start with the symptom rather than the brand name. Wet, flat foam points towards restricted aeration, a blocked outlet, a worn whisk or an incorrect milk path. A leak from the jug or base suggests a seal, O-ring or connection problem. No heat with normal electrical power points towards the heating circuit, thermostat or control system. A machine that hums without moving milk may have a seized whisk, damaged coupling or blocked impeller.

Workshop rule: Diagnose the failed subsystem before buying a bag of parts. Replacing a clean, working whisk won't cure a restricted steam valve, and fitting a new seal won't revive a failed control board.

A practical fault check looks like this:

  1. Observe the output. Note whether the frother heats, aerates, leaks, makes an unusual noise or fails completely.
  2. Inspect removable parts. Remove the whisk, paddle, nozzle, lid and accessible seals. Look for dried milk, cracks, distortion and excessive play.
  3. Check the cleaning path. Detergent residue can restrict milk tubes and steam outlets. A blocked path can imitate a mechanical failure.
  4. Confirm electrical symptoms. If the unit is dead, isolate the appliance and leave electrical diagnosis to someone competent with mains equipment.
  5. Identify the exact model. Don't order until the product code, model reference or compatible part number has been checked.

UK repair services demonstrate that a dedicated milk-frother repair can be economically viable when the fault is isolated. One UK service quotes £54.95 for a milk-frother repair and advertises restoration to factory specifications with a 27-month warranty. Those figures come from the service provider's listing, so treat them as a quoted repair example rather than a universal market price. See the UK repair example for a Sage Bambino Plus milk-frother system.

The decision changes when several systems have failed together. Parts, labour and lost service time can make a replacement unit more sensible, particularly if the appliance is old or its control electronics are no longer supported. A small operator still has a genuine repair-versus-replace choice, but only after confirming what has failed.

Common Milk Frother Replacement Parts Explained

A commercial steam system and a standalone automatic frother use different assemblies, but the failure logic is similar. Each part has a job, a recognisable symptom and a different level of serviceability.

Genware Stainless Steel Shakers (Multiple Sizes)

The parts that shape foam and control flow

The steam wand tip or aeration nozzle introduces air and steam into milk. A four-hole outlet distributes flow differently from a three-hole outlet, so the replacement must match the original design and thread. A blocked hole usually produces weak, wet or flat foam, uneven heating or a wand that spits rather than rolls the milk. This is often a service-friendly clean or swap, provided the machine is cool and depressurised.

The frothing whisk or automatic paddle physically agitates the milk. Look for a whisk that spins slowly, wobbles, detaches from its coupling or leaves large bubbles instead of a fine texture. These are common wear parts on standalone units because the attachment sees repeated heat, detergent and mechanical load.

A silicone or rubber seal sits between a jug, lid, tank, valve or base. It prevents leaks and helps the system maintain pressure or a controlled milk path. Flattened, hardened, cracked or swollen seals should be replaced rather than stretched back into position.

The solenoid valve and steam valve assembly regulate air, steam or water. A valve that sticks can cause inconsistent output, continued dripping, poor heating or no flow at all. Valve work is less suitable for casual DIY because it can involve pressure, wiring and tight internal connections.

The internal silicone tubing carries milk, steam or cleaning solution. It can harden, split, kink or become restricted by residue. Tubing replacement is usually straightforward when the route and diameter are known, but a tube that looks correct externally may still be the wrong internal size.

Finally, the drive motor or impeller powers automatic movement. Grinding noises, intermittent starting, a hot smell or a motor that runs without moving the milk point towards the drive system. Motor and PCB faults generally belong in a workshop unless the appliance design provides clear, safe access.

Milk Frother Replacement Parts at a Glance

Part Function Common Failure Signs Typical Service Life
Steam wand tip or aeration nozzle Distributes steam and air Wet foam, spitting, uneven flow Depends on cleaning and water quality
Frothing whisk or paddle Agitates milk Slow rotation, wobble, coarse foam Depends on use and residue exposure
Seal or gasket Prevents leaks and maintains a seal Drips, milk escaping at the base Shortens with heat, chemicals and distortion
Solenoid or steam valve Controls steam, air or water Sticking, dripping, weak or absent flow Depends on water quality and service
Silicone tubing Carries milk or steam Kinks, splits, restricted flow Depends on heat and cleaning routine
Motor or impeller Drives automatic frothing Humming, grinding, no movement Depends on load and maintenance

For wider equipment handling references, browse home products catalog can help when you're comparing small-appliance accessories and related supplies. Within a drinks service setup, Genware Stainless Steel Shakers (Multiple Sizes) is listed in the barista gear category, although it isn't a frother spare.

The right component depends on the appliance architecture. A whisk, seal or removable nozzle is often suitable for a careful in-house replacement. A pressurised valve, heater, motor or control board normally deserves a trained repairer. For background on how different frothing systems work, use the guide to milk frother types and uses.

How to Identify Your Frother Model and Part Numbers

The most expensive mistake in spare-parts procurement is buying a component that looks right but belongs to another revision. Milk frother parts are model-specific, not universally interchangeable. A Salter Aspen replacement whisk is listed as fitting product code EK6359 and also EK6328, which is a useful reminder that compatibility must be checked against the appliance reference, not just the product description. Review the Salter compatibility example before treating a similar-looking part as suitable.

Read the data plate correctly

Look on the rear, side or underside of the frother. The plate may show:

  • Model number, the reference used to identify the appliance family and specification.
  • Product code, often more precise than a broad model name.
  • Serial number, an individual identifier used for manufacturing and service history.
  • Electrical rating, useful for confirming that you're looking at the correct appliance.

Suppliers may list manufacturer prefixes from brands such as Nuova Simonelli or Fracino, followed by a component code or assembly reference. Don't assume every number on the plate is an orderable part number. The model or product code identifies the machine, while the spare's own number identifies the replacement component.

A UK spare-parts platform says it can supply more than 840 milk-frother products and asks customers to provide a photo of the model-number plate and a description of the fault so the correct part can be identified. Use the milk-frother parts catalogue and identification guidance when the listing doesn't make compatibility obvious.

When the plate has disappeared

Paint, heat and cleaning chemicals can make a plate unreadable. Photograph the whole unit from the front, rear, sides and underside. Include the jug, lid, whisk, connectors and any visible valve or nozzle.

Measure accessible port diameters and thread types with a simple ruler, but treat measurements as supporting evidence rather than proof. A thread can appear similar while differing in pitch, depth or sealing method. Cross-check the photographs, dimensions, brand and machine layout against Allied Drinks Systems listings before ordering.

Photograph the faulty part next to a ruler. Place a piece of paper beside it showing the date and the appliance model as you understand it. That single image gives a supplier visual evidence of shape, scale and condition, reducing the back-and-forth that causes avoidable downtime.

For a basic explanation of the components behind commercial beverage equipment, learn how a commercial coffee machine works before opening a steam or electrical assembly.

Repair or Replace Making the Right Call

A part swap makes sense when the fault is isolated, the replacement is available and the rest of the frother remains sound. A worn whisk, tired seal, blocked nozzle or split tube rarely justifies discarding an otherwise reliable appliance. The calculation becomes less attractive when a motor, boiler housing and control electronics show faults at the same time.

The repair price should include more than the spare. Add labour, a call-out, delivery, testing and the cost of the drinks service lost while the machine is unavailable. A café may also need to consider whether staff can fit the part during a quiet period or whether the appliance must go to a workshop.

A UK right-to-repair framework introduced for products bought from 1 July 2021 onward requires manufacturers to make spare parts available for certain appliances for up to 10 years after sale, with some components available directly to consumers and others reserved for professional repairers. The rules included a two-year grace period for manufacturers to publish or stock parts. They don't automatically cover every frother, but they support a broader UK expectation of repair manuals, conventional-tool dismantling and spare-part availability. Read the UK milk-frother parts context and right-to-repair background.

Repair vs Replace Decision Matrix

Factor Favours Repair Favours Replace
Fault location Whisk, seal, nozzle or tube Motor, PCB or several systems
Parts access Correct component is identified and available Part is obsolete or uncertain
Appliance condition Housing, heater and controls are sound Cracks, corrosion or heat damage
Service impact Repair can happen outside peak use Downtime threatens daily trading
Warranty Repair route is approved Unauthorised work risks cover
Running costs Current performance remains acceptable Older design consumes more or performs poorly
Total cost Parts, labour and testing remain proportionate Repair approaches the price of a comparable unit

Don't use an arbitrary age threshold as the only test. A well-maintained frother with a replaceable mechanical fault can be worth repairing, while a newer unit with a failed proprietary board may be uneconomic. Ask for a written diagnosis, confirm the complete parts list and compare the finished repair with a properly specified replacement.

Ordering Spare Parts Through Allied Drinks Systems

A café machine can be back in service quickly, or sit idle while the wrong whisk or valve is returned. The difference is usually the information supplied at the start. Search using the brand, appliance family, model number and part type. “Milk frother whisk” alone can produce components with different couplings, shaft lengths or electrical connections.

Use this ordering workflow:

  1. Record the appliance identity. Copy the model and product code exactly, including letters and suffixes.
  2. Describe the symptom. State whether it leaks, fails to heat, produces weak foam, makes noise or remains completely dead.
  3. Photograph the assembly. Show the faulty component, connector, mounting point and data plate.
  4. Check compatibility. Match the supplier's model references to the appliance plate, not just the photograph.
  5. Review the basket. Confirm quantity, left or right variants, seal profile and electrical rating before payment.
  6. Ask before ordering if uncertain. A clear model-plate photograph during a phone conversation can prevent an incorrect-fit return.

This approach matters in the UK because cafés and workplaces often run several brands and formats. Allied Drinks Systems covers coffee equipment, ingredients, disposables, accessories and spare parts, so one supplier can reduce fragmented purchasing. Check the spare-parts availability page before committing to a repair plan, particularly where a model-specific component may need to be sourced.

Account and VAT treatment can differ between trade and domestic orders. Check the treatment shown before checkout. A trade account may suit a café ordering regularly, while guest checkout can be practical for a one-off home repair. Special-order electrical parts may have different return conditions, even when unopened. Read the current terms for model-specific and non-stock items.

Check delivery at the same time. Allied Drinks Systems states that its Eastbourne warehouse supports same-day dispatch up to 4:30pm, Monday to Friday, while free next-working-day mainland UK delivery applies to orders over £69 excluding VAT, subject to its delivery terms. Review the supplier's delivery and service information before scheduling the repair or relying on a general delivery assumption.

Step-by-Step Replacement and Cleaning by Part Type

Only work on a frother when it's unplugged, cool and isolated from pressure. Mains appliances, steam circuits and heated vessels can injure you even when the visible fault looks minor. Keep the manual, a phone for photographs, screwdrivers, pliers, a spanner set and a multimeter available, but don't use a meter or open a powered appliance unless you're competent to do so.

Whisks and drive couplings

Remove the jug, lid and whisk according to the manufacturer's method. On designs using a retaining clip, release the clip without bending it, then inspect the drive coupling for rounded edges, cracks or excessive movement.

Clean the seat before fitting the replacement. A new whisk won't run correctly if dried milk is holding it off-centre. Fit the new attachment, refit the clip and turn the assembly by hand to check that it moves freely. Test at low speed with the jug correctly seated, then check foam texture and unusual noise.

Seals and O-rings

Remove the old seal with a blunt plastic pick rather than a sharp blade that can score the sealing groove. Wash the seat, remove all residue and inspect the mating surfaces for cracks or distortion.

Apply only a light film of food-grade silicone grease where the manufacturer permits it. Fit the seal in its original orientation. A twisted O-ring may appear seated but leak once the system heats or pressure changes.

Steam valves and solenoids

This is not a casual live-service task. Isolate the machine, allow the boiler and pipework to cool, and depressurise fully before removing a valve or solenoid assembly. Photograph every wire, tube and bracket before disconnection, then label connections if several look alike.

Use the correct spanner and avoid forcing brass fittings. Reassembly needs the manufacturer's specified tightening method, because overtightening can damage threads or crush a seal, while insufficient tightening can create a leak. If you can't confirm the assembly sequence, stop and use a trained technician.

Silicone tubing

Cut replacement food-grade silicone tubing squarely with a clean blade. Match the internal diameter, route and length of the original, then push each end fully over its connector or into its push-fit fitting.

A tube that's too short can pull on a valve. One that's too long can kink behind a panel. Run a water-only test where the appliance design permits it, check every joint for seepage and inspect the milk path again after the first cleaning cycle.

Motors and electrical components

A motor that hums, stalls, smells hot or trips protection needs more than a new whisk. Inspect brushes only if the design provides safe access. Capacitors can retain charge, so don't touch internal electrical components without the correct knowledge and isolation procedure.

Use a multimeter only when you understand the circuit and the manufacturer's test method. Stop immediately if you find burned wiring, damaged insulation, a swollen capacitor, water near electrical terminals or a failed control board. The cost of a professional diagnosis is lower than the risk of turning a manageable fault into an electrical incident.

After any replacement, check the jug or wand seal, steam output, milk flow, temperature behaviour and shutdown function. For steam systems, follow a proper steam-wand cleaning routine so the new part isn't immediately exposed to the residue that caused the original problem.

Maintenance Habits and Answers to Common Questions

Replacement parts last longer when the cleaning routine matches the way milk and steam move through the appliance. Rinse and wipe the steam wand after each use, deep-clean removable whisks and seals weekly with an approved product, inspect tubing and O-rings monthly, and run descale cycles according to local water hardness rather than an arbitrary calendar.

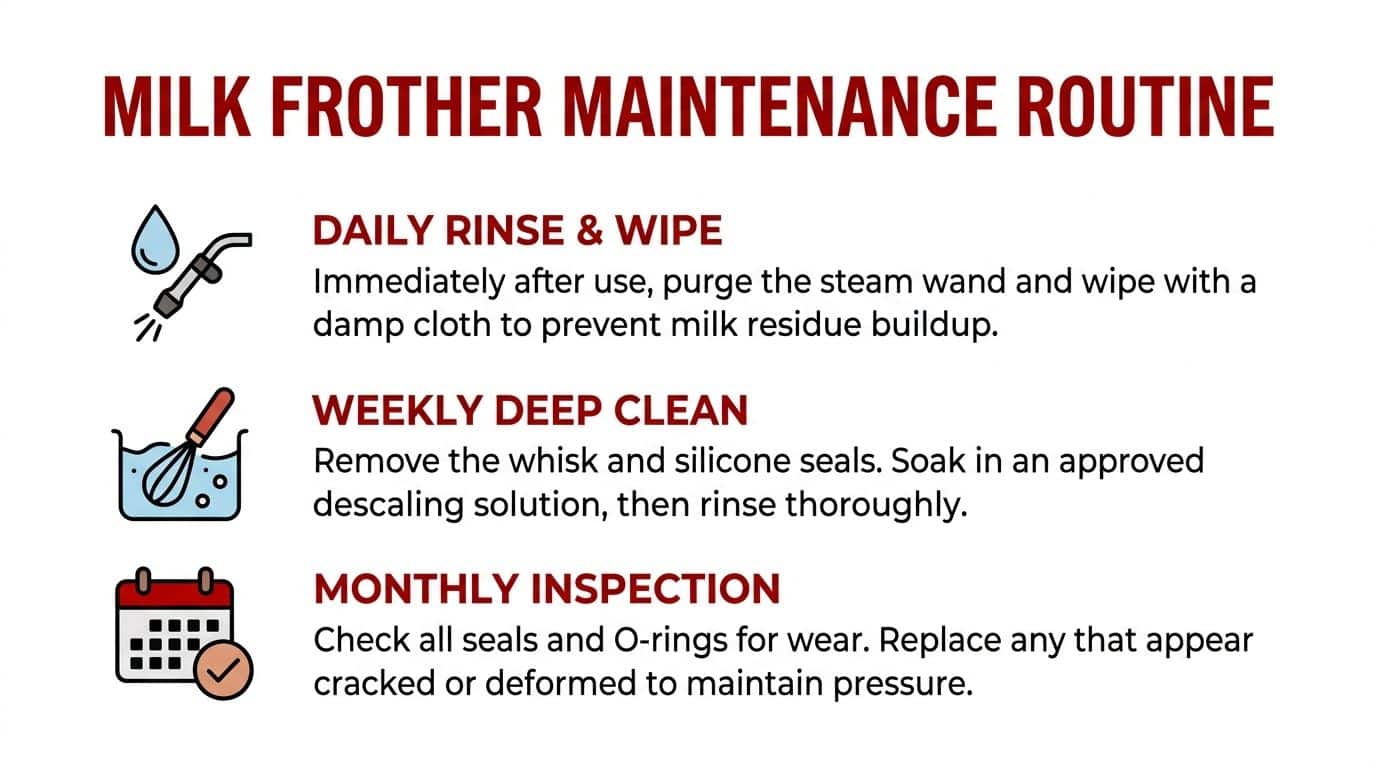

A helpful infographic outlining a daily, weekly, and monthly maintenance schedule for a milk frother device.

A routine that prevents repeat faults

  • After every service: Purge the steam wand where the machine's procedure allows, then wipe it immediately with a damp cloth.
  • Each week: Remove the whisk, paddle, lid and accessible seals. Clean milk residue from the parts and rinse them thoroughly.
  • Each month: Look for hardened O-rings, split tubing, loose couplings and discoloured connectors.
  • At descale time: Use an approved descaler and follow the appliance instructions. Water hardness should determine the frequency.
  • After fitting a spare: Record the date, part description and symptom resolved. That log helps identify recurring failures.

Questions technicians hear regularly

Why does the frother leak from the base?
Usually the seal, O-ring, jug seat or tubing connection deserves inspection first. As covered earlier, clean the seating surface before fitting a new seal, then test for leaks while the appliance is cool and, where appropriate, during a controlled operating test.

Can a third-party seal void the warranty?
That depends on the manufacturer's warranty terms and whether the part is approved for that appliance. Check before fitting it, especially if the machine is still covered. Keep the original part and purchase record until the repair has been tested.

How can I spot a failing motor before it seizes?
Listen for grinding, intermittent starting or a change in speed. A motor that runs hot, smells unusual or struggles under its normal load should be isolated and assessed before it damages the coupling or control system.

What tightening torque should I use on boiler fittings?
Use the manufacturer's specified torque where one is provided. Don't guess by adding force. Brass fittings, threaded heaters and sealing washers can be damaged by overtightening, while an under-tightened joint may leak after heating.

Are steam-valve rebuild kits worthwhile on older machines?
They can be, but only when the valve body, threads and surrounding pipework remain sound. If the assembly is corroded, the control system is unreliable or several faults are present, a rebuild may postpone rather than solve the larger repair decision.

Allied Drinks Systems supplies a multi-brand range of coffee equipment, ingredients, accessories and spare parts for UK cafés, workplaces, hospitality venues and home users. Visit Allied Drinks Systems with your model plate photographs and fault notes to source compatible milk frother replacement parts and consolidate the rest of your drinks-service order.
